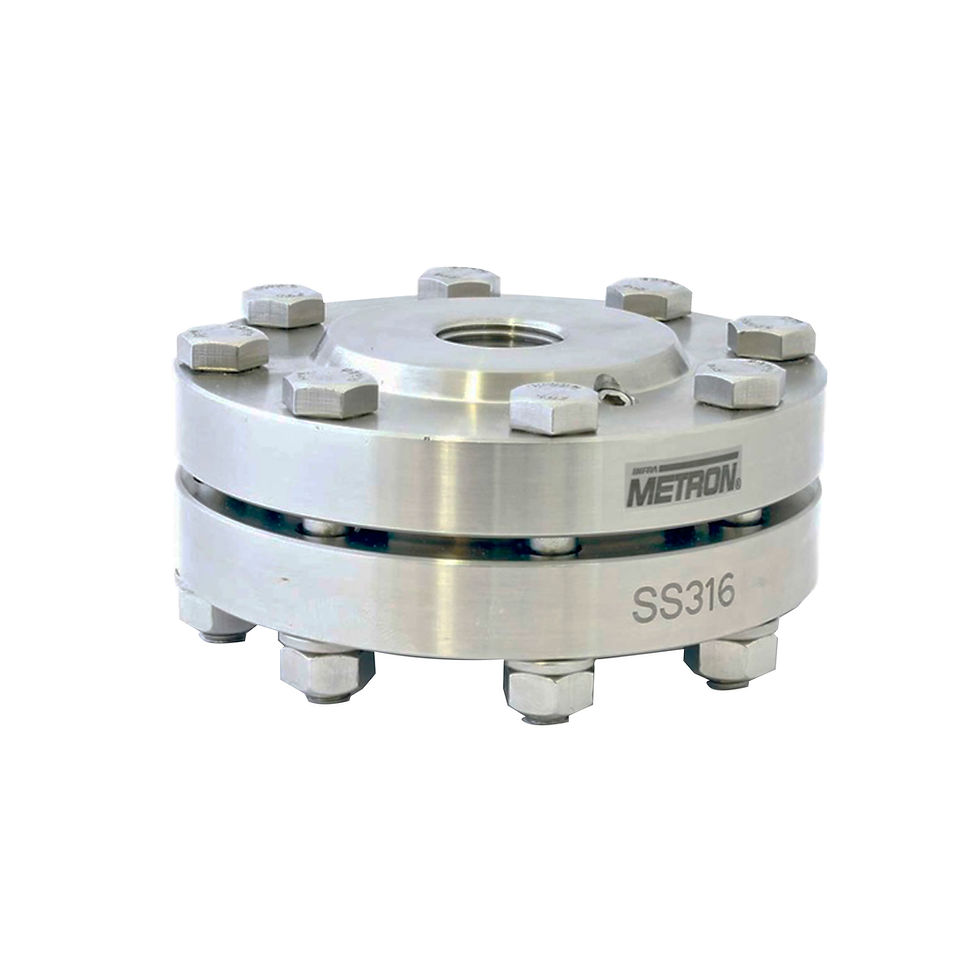

Chemical Seals
Used to protect the pressure gauge from the high temperature effect of steam.
Material of Flanges
Material of Diaphragm
Connection to Pressure Gauge
Connection to Process
- Carbon Steel | SS316L | Glycerin -2°C / +120°C | 1/4" NPT | SS304 | SS316L
- Silicone DC200 -45°C / 150°C | 3/8" NPT | SS304 | SS316L
- Silicone DC200 -45°C / 150°C | 3/8" NPT | SS316 | HASTELLOY C | Silicone VR350 -45°C / 350°C | 1/2" NPT
- SS316L | HASTELLOY C | Halocarbon 1.8 -40°C / +160°C | 3/4" NPT
- HASTELLOY C | Monel 400 | Flurolube FS-5 -60°C / +160°C | 1" NPT | Monel 400 | Monel 400
- Vegetable Oil +2°C / +80°C | 1 1/4" NPT | Teflon | Monel 400
- Vegetable Oil +2°C / +80°C | 1 1/2" NPT | PVC | Teflon | Neobee GA -20°C / +160°C | 1 3/4" NPT
- Polyethylene | Teflon | Silicone VR350 GA -18°C / +190°C | 1 3/4" NPT
- Polypropylene | Teflon | Silicone VR350 GA -18°C / +190°C | 2" NPT
